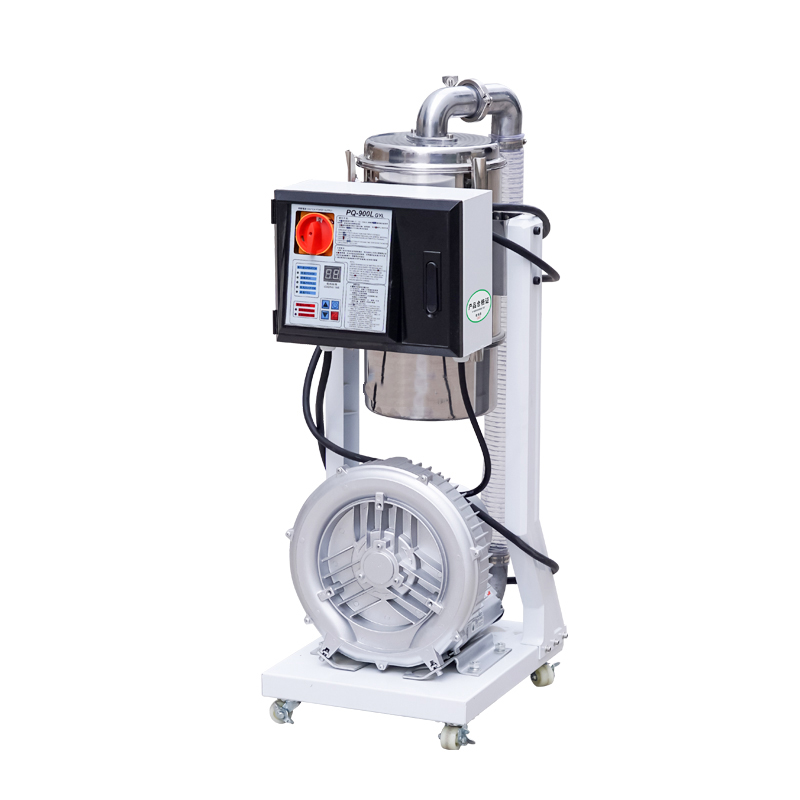

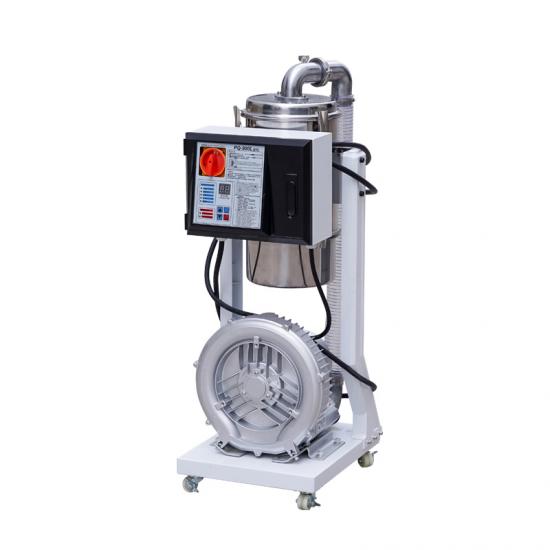

Designed specifically for injection molding and extrusion production lines, the intelligent 900G Suction Machine achieves dust-free feeding through automatic vacuum control, supports fast switching of multiple specifications of barrels, and is equipped with an overload protection device to ensure continuous and safe operation, improving feeding efficiency.
ItemNO:
900GOrder(MOQ):
1ProductOrigin:
Huizhou, ChinaColor:
WhiteShippingPort:
Shenzhen, ChinaLeadTime：
15 DaysBrand:
PQProduct Description
In plastic processing, reliable and easy-to-use material conveying is the key to smooth production. This machine uses a corrosion-resistant stainless steel material door to adapt to harsh environments, and the built-in motor protection device can resist overload and extend the life of the equipment. The standard cloth filter ensures clean feeding and eliminates dust pollution. The low-material alarm reminds the operator to replenish raw materials in real time. The humanized design simplifies the operation steps, and the quick-release components make daily maintenance easy.
Product Parameters
| Model | 900G |
| Motor Type | Induction Type |
| Motor Specification | 2.2kW3Ø |
| Voltage | 380V |
| Fan-Out Capability (kg/h) | 650 |
| Feed Delivery Pipe | 38MM |
| Storage Bucket Capacity (L) | 7.5 |
| Storage Bucket Size (cm) | 27×27×50 |
| Body Weight (kg) | 62 |
| Storage Vat (kg) | 6 |
| Body Size (cm) | 51×38×104 |
Key Features

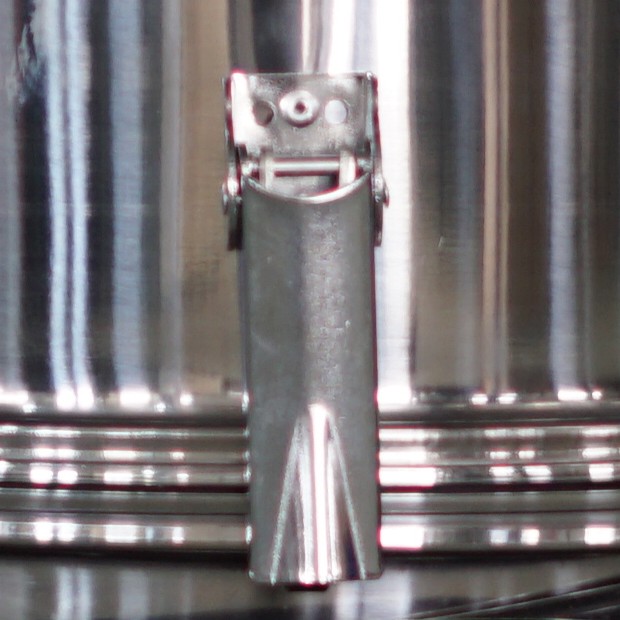

✅ Stainless Steel Material Door Is Corrosion-Resistant: The material door is made of stainless steel, which is dust-resistant and moisture-resistant, adapts to the complex environment of the injection molding workshop, and extends the service life of the equipment.

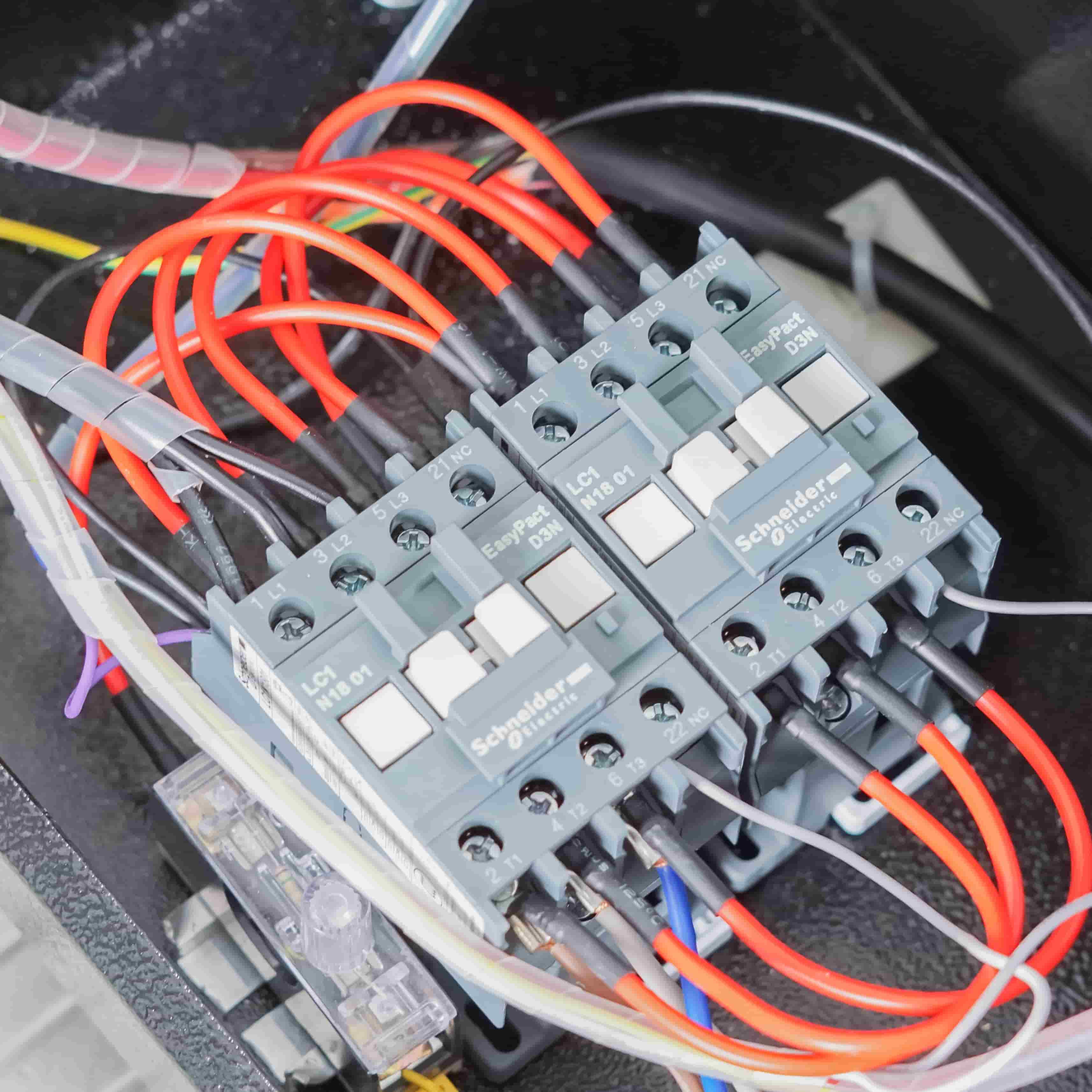

✅ Motor Overload Protection: The built-in motor protection device monitors the load status in real time, automatically shuts down when overloaded, and effectively avoids the risk of motor burning.
✅ Real-Time Reminder Of Material Shortage Alarm: Audible alarm alerts operators immediately when materials run low, preventing production line interruptions.

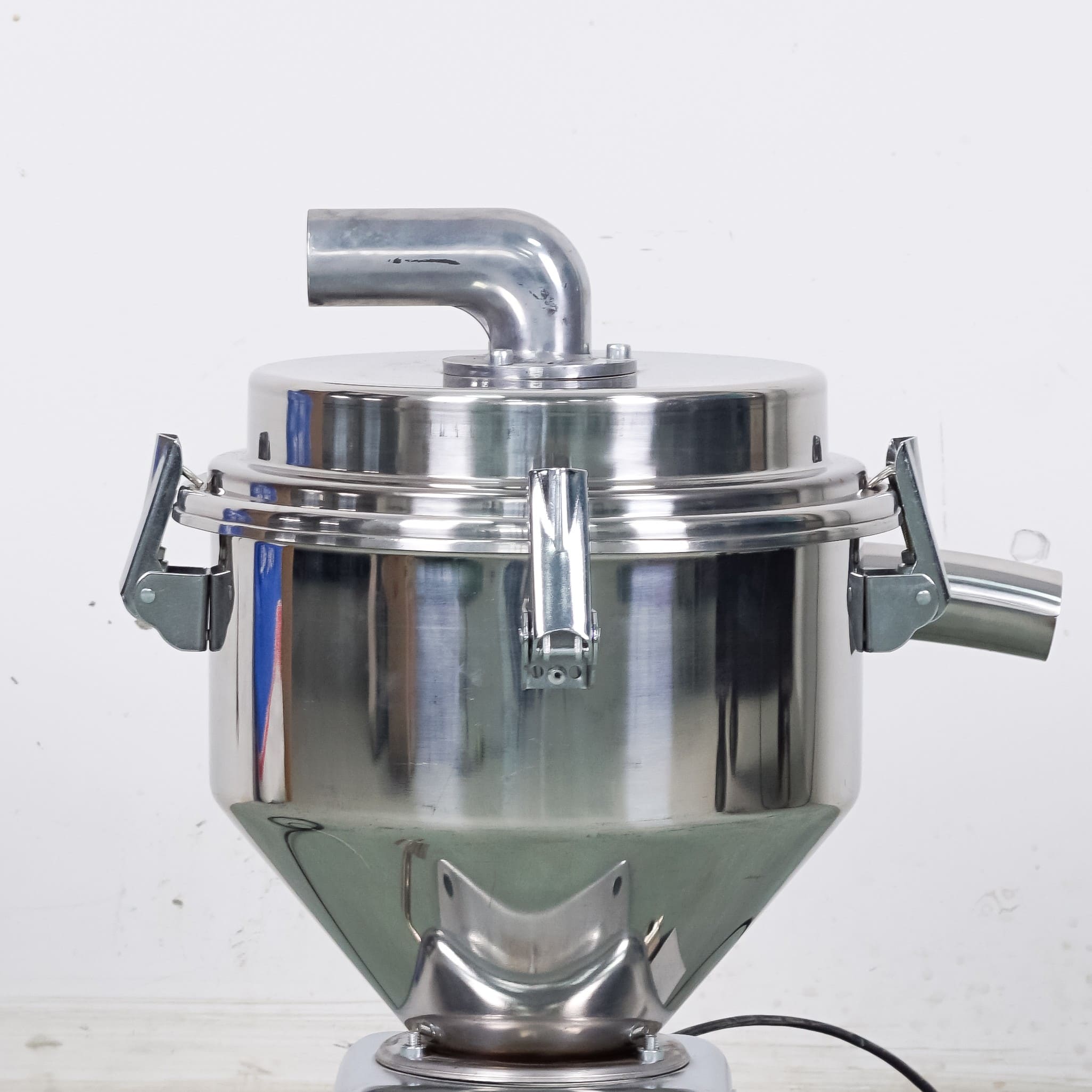

✅Quick-Release Barrel Separation: The barrel and hopper can be separated quickly, and the material cleaning and replacement can be completed within 10 minutes, greatly shortening the downtime.

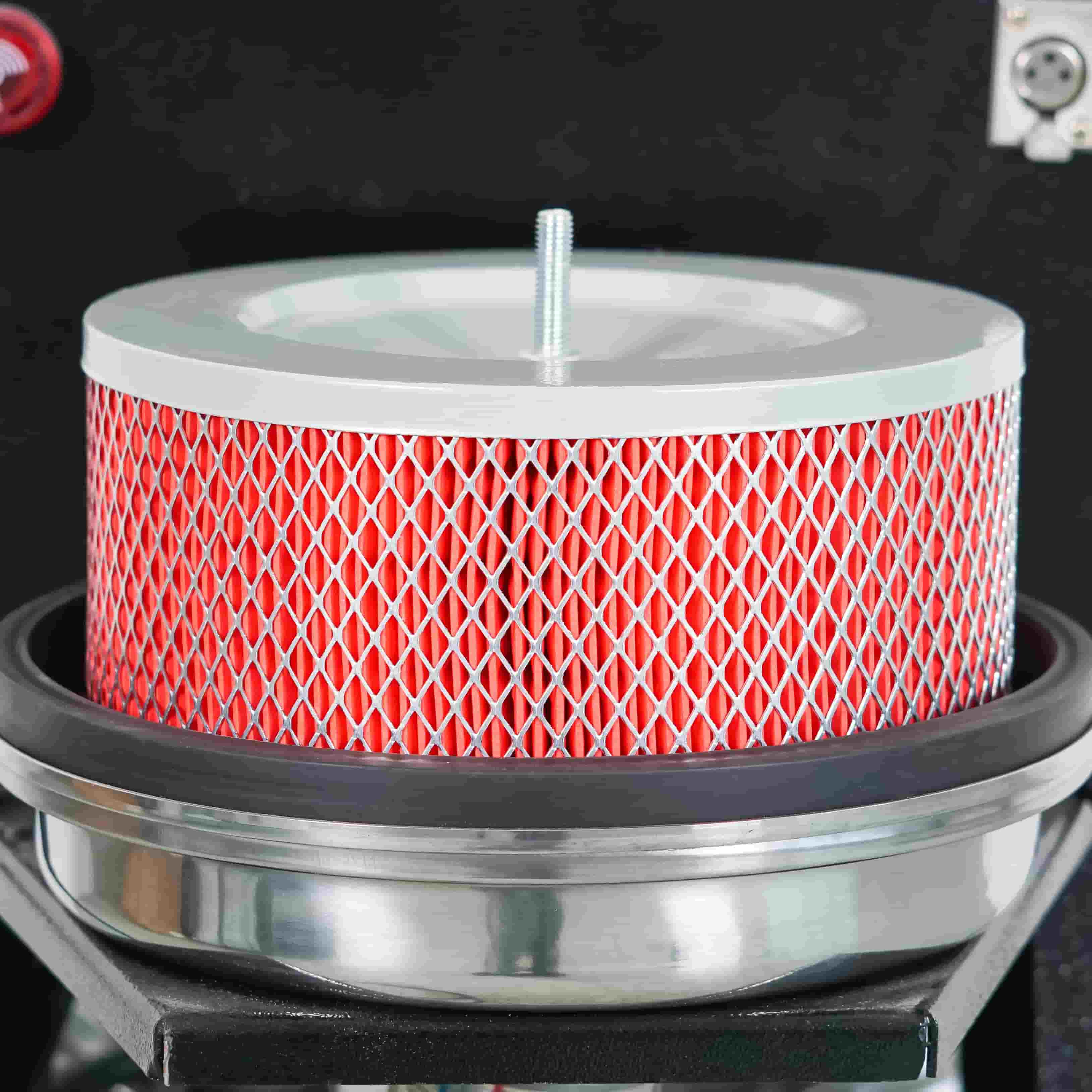

✅Standard Configuration Of Cloth Filter: Standard high-precision cloth filter to filter dust impurities, ensure the cleanness of the conveyed raw materials, avoid mold blockage, and product defects.
✅Direct Connection Design Of Molding Machine: The ZAL-300E model is equipped with a beam photoelectric switch, which can be directly installed at the inlet of the molding machine, eliminating complex pipeline connections and improving feeding efficiency.
✅Dust Explosion-Proof Design: The curved pipe structure is combined with the sealing design to reduce dust retention in the heating area and improve production safety.
✅Simple Operation Interface: There is no complex button design, and it runs automatically after power-on. Novices can also get started quickly, reducing training costs.
✅Multi-Scenario Adaptation: Compatible with various plastic particles such as PA, PET, PC, etc., suitable for various molding processes such as injection molding and extrusion to meet diverse production needs.
Product Detail Display

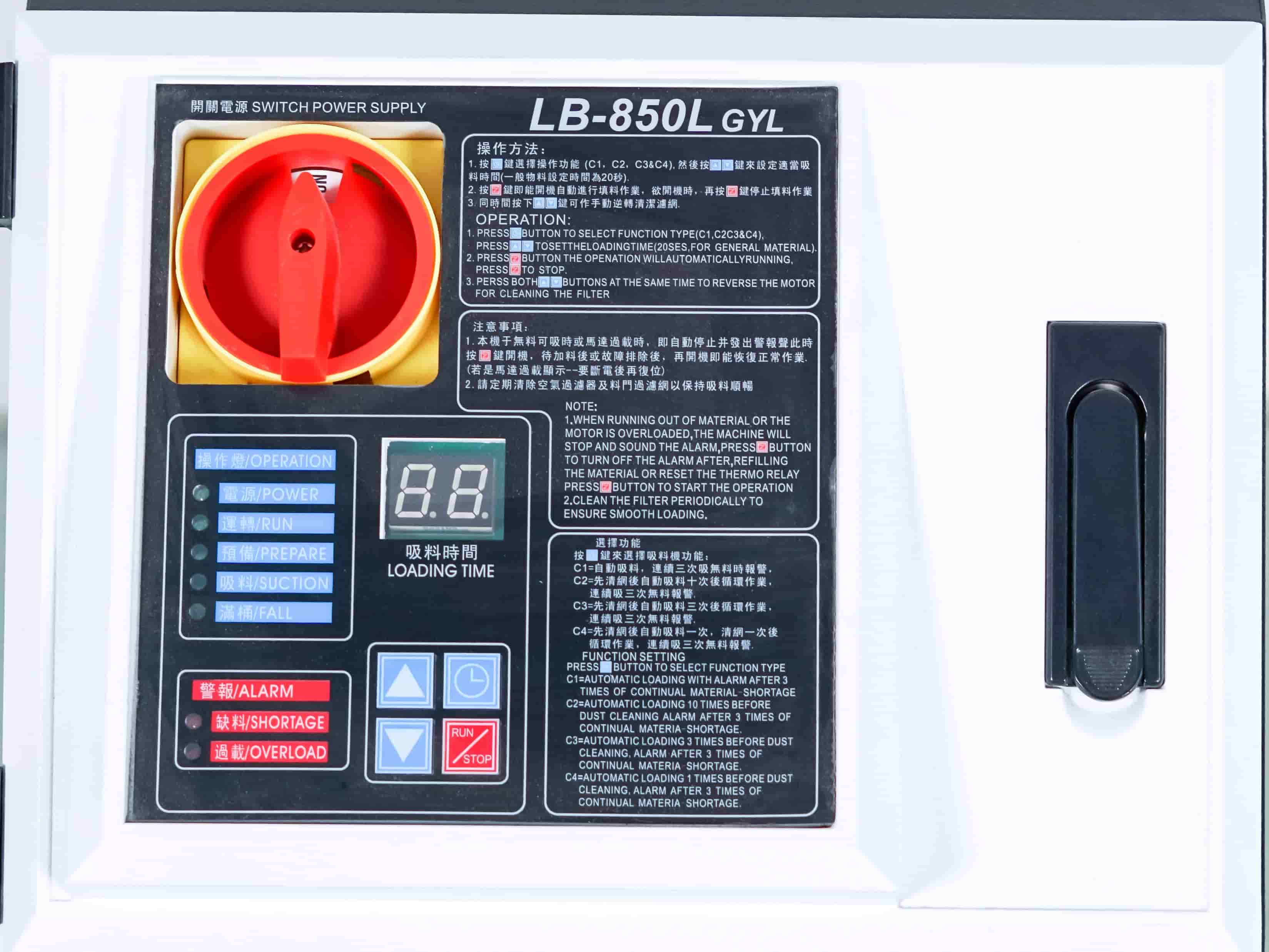

MICROCOMPUTER CONTROL PANEL
SIMPLE OPERATION
Automatic feeding, time adjustable,
lack of material or motor overload stop, and alarm.

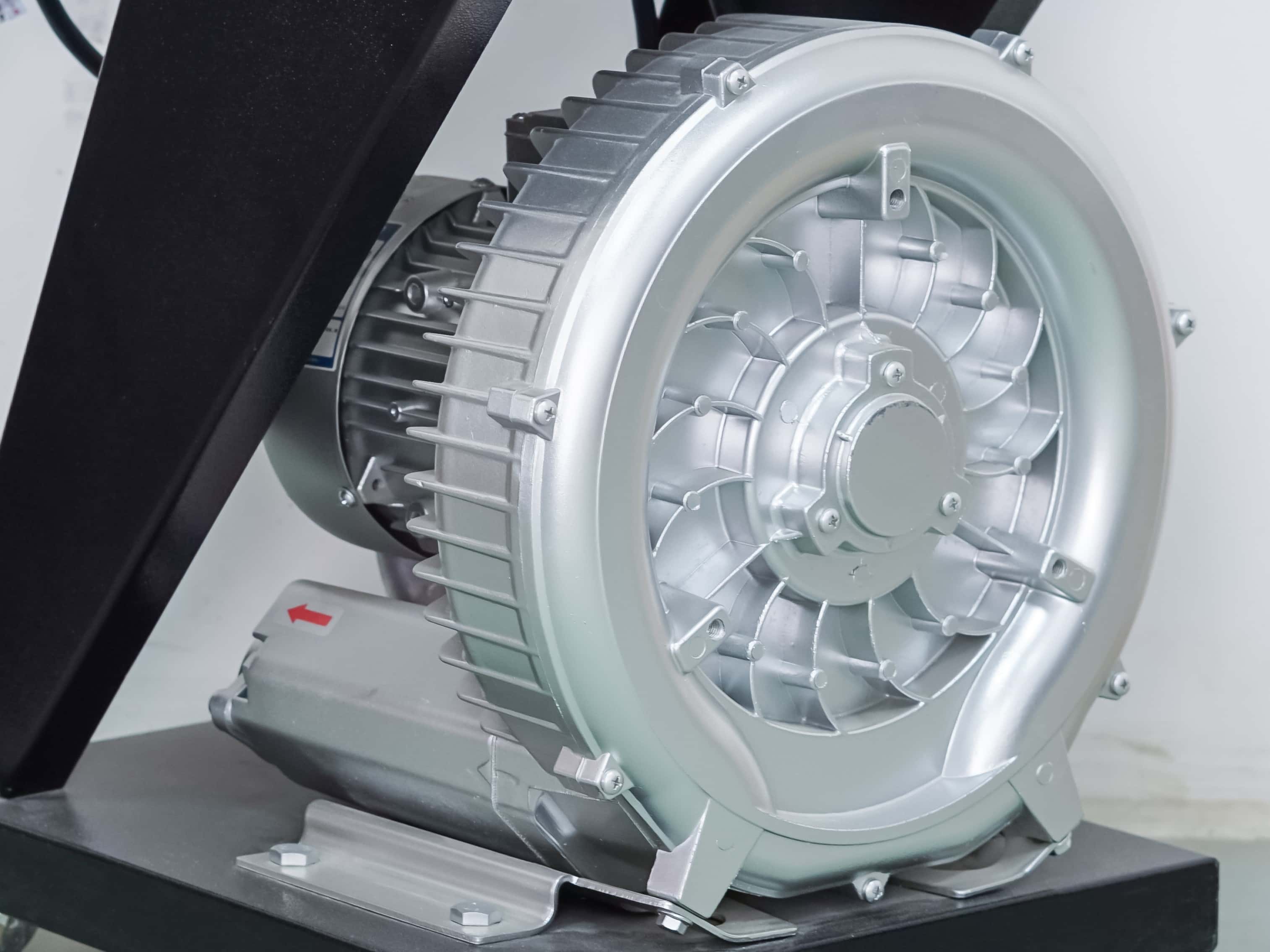

A HIGH-PRESSURE FEEDING FAN
CAN RUN FOR A LONG TIME
Induction-type high-power fan, large suction, faster loading.
Long service life, can be a long time of uninterrupted work.

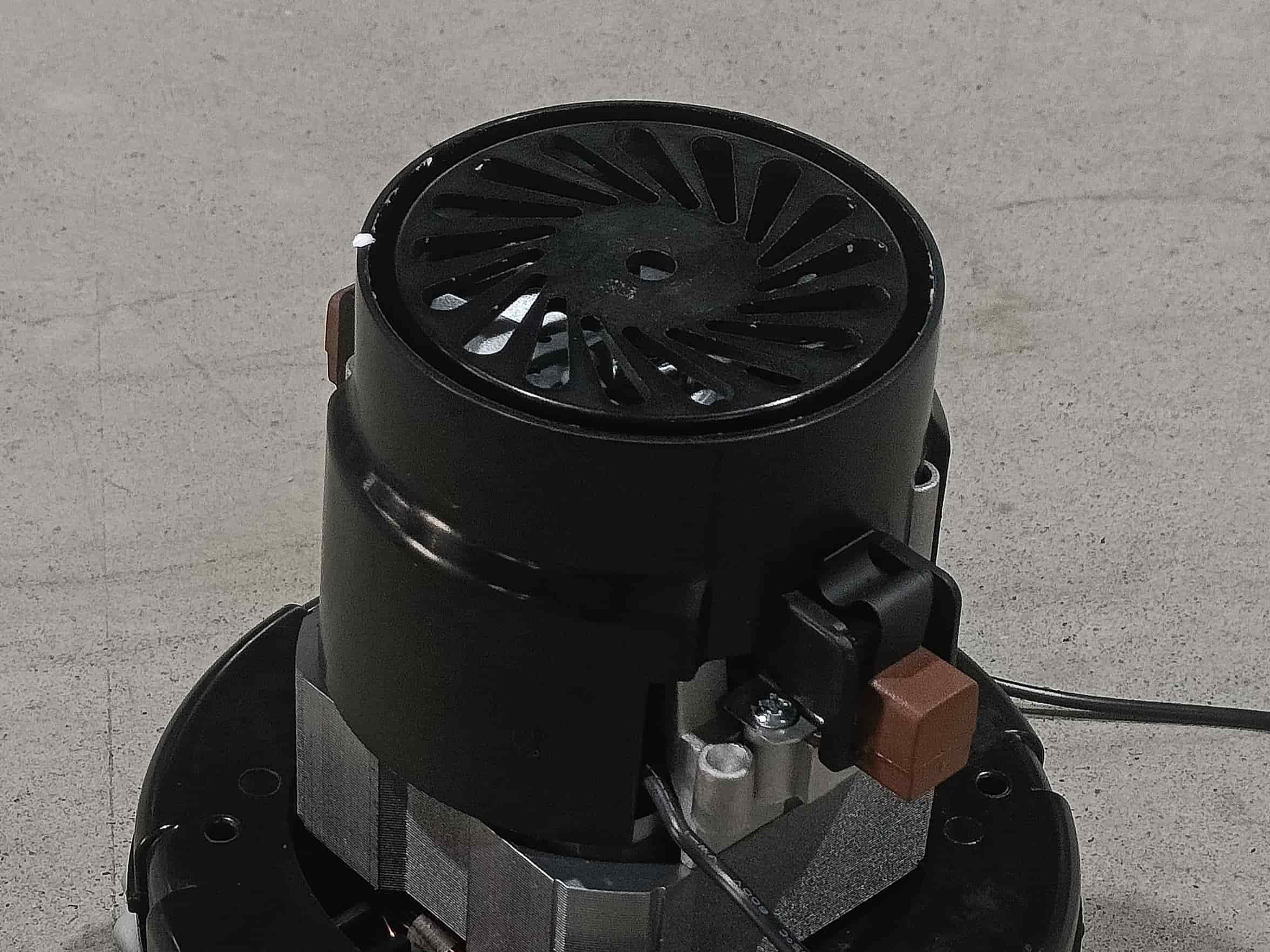

PURE COPPER CORE MOTOR
Copper core carbon brush motors
small size, high efficiency, stable operation.
▶Yes, we are a manufacturer with over 10 years of experience.
2) How can I place an order?
▶You can contact us by email about your order details or place an order online.
3) What's the order procedure?
▶We issue you a Proforma Invoice after you confirm the order. And then you pay the deposit before we go into production. It usually takes 7-15 days for production. We will contact you for shipment details and the balance payment when the machine is ready. After payment has been settled, we will ship out the machine.
4) How can I pay you?
▶You can make payment by T/T (telegraphic transfer), Western Union, Moneygram, and L/C.
5) Do you have a manual for the machine?
▶Yes, of course. It is in the English version. We will send it with the machine.
6) Can you offer us the necessary paperwork for customs clearance?
▶Yes, of course. We will send you all the papers you need.
